Additional Info

• Name: Honda WAVE Dash R 110 - Fi
• Code: AFP110CRFH
• Year: 2018
• Condition: New
• Price: RM 5,829.00
• Description:



  90% LOAN
  **No motorcycle license**
  **No Guarantor**



• Color:

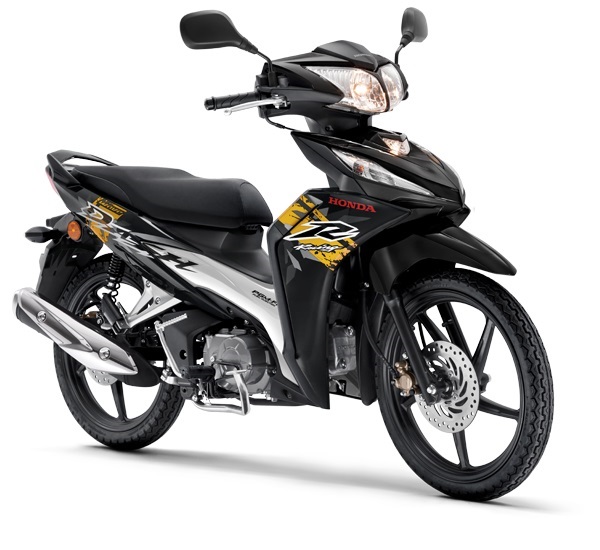

  1. Hitam Mutiara Magellen/ Pearl Magellanic Black

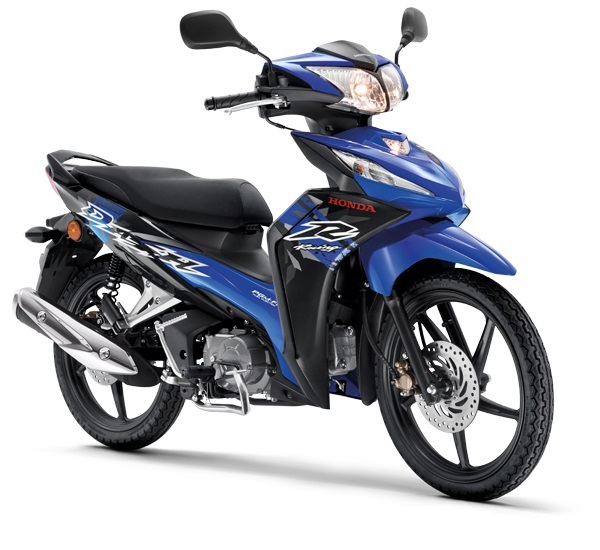

  2. Biru Vital Metalik/ Vital Blue Metallic

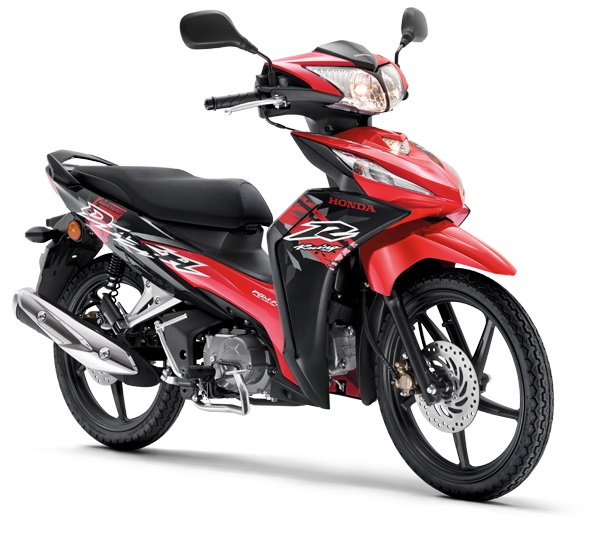

  3. Merah Lincah/ Vivacity Red



• Loan Charts:



  Express Loan Calculation:-



  D/P RM 690.00

  60 Bln RM 149.00
  48 Bln RM 175.00
  42 Bln RM 193.00
  36 Bln RM 218.00
  30 Bln RM 252.00
  24 Bln RM 303.00
  **********************

  D/P RM 960.00

  60 Bln RM 143.00
  48 Bln RM 167.00
  42 Bln RM 185.00
  36 Bln RM 208.00
  30 Bln RM 241.00
  24 Bln RM 290.00
  ***********************

  D/P RM 1260.00

  60 Bln RM 135.00
  48 Bln RM 159.00
  42 Bln RM 175.00
  36 Bln RM 198.00
  30 Bln RM 229.00
  24 Bln RM 275.00



  ***PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE***

  *******************************************


  Document Yang diperlukan:-
  FAX :03-62576906/E-Mail:This email address is being protected from spambots. You need JavaScript enabled to view it.
  Watsapp: 017-4708895


  - IC
  - Slip Gaji - 1 Bulan TERKINI @ Bulan yang Lepas,


  ***Terms AND Conditions apply***

  ==================================


  FREE items PERCUMA:-

  Free Helmet X-dot-with visor
  Free Safety U-lock/disc lock
  Free Baju hujan
  Free Basket
  Free Key Chain
  Free Geran Folder
  Free Road Tax Cover
  Free PA-RM 5000.00
  Lifetime Free Service


  ***ITEMS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE***





• Specification:



  ENGINE
  Engine Type	Air cooled, 4 Cycle Engine OHC
  Bore & Stroke	50 X 55.598 mm
  Displacement	109.16cc
  Compression Ratio	9.0 : 1
  Lubricating Oil Capacity   Fuel Tank Capacity Plug	1.0 Liter (After Disassembly), 0.8 Liter (After Draining) 4.0 Litres NGK - CPR6EA-9S
  TRANSMISSION
  Clutch	Automatic Centrifugal Clutch Wet Type
  Transmission	4 Speed Constant Mesh
  1st Gear	2.615 (34/13)
  2nd Gear	1.555 (28/18)
  3rd Gear	1.136 (25/22)
  4th Gear	0.916 (22/24)
  Primary Reduction Ratio	4.059 (69/17)
  Final Reduction Ratio	2.642 (37/14)
  ELECTRICAL SYSTEM
  Ignition system	DC-CDI
  Battery	YTZ4V  12V / 3.0 A-h (Kick & Electric Starter)
  DIMENSIONS
  Length x Width x Height	1907mm x 709mm x 1080mm
  Wheelbase	1227mm
  Net Weight	Dash S Type: 102kg Dash R Type: 104kg
  CHASSIS
  Frame	Back bone
  Suspension                    Front Rear	Telescopic 81mm Twin 82mm
  Tyre Measurement           Front Rear	70/90-17M/C 38P 80/90-17M/C 50P
  Tyre Pressure                  One Person Two Persons	Front 200kPa       Rear 225kPa          Tubeless Front 200kPa       Rear 280kPa          Tubeless
  Caster	26° 5'
  Trail Distance	68mm
  PERFORMANCE
  Maximum horse power	6.25kW (8.39PS) / 7500rpm
  Maximum torque	8.42Nm (0.83kgf.m) / 6000rpm





  Bulb

  Headlight                                                        12V 35/35W


  Winker (Signal)                                                    12V 10W

  Wedge base (Small light)                                       12V3.4W

  Taillight                                                              12V/18/5W

  Meter                                                   12V 1.7W / 12V 3.4W



  Wheel Bearing

  Front                                                                    6201UU

  Rear                                                                     6201U - L

                                                                             6301U - R



  Wheel Dust Seal

  Front                                                                42 X 54 X 7 - L

                                                                         21 X 37 X 7 - R

  Rear                                                                 27 X 40 X 4.5



  Sprocket & Chain

  Front Drive                                                           14T


  Final Driven                                                          37T


  Chain                                                                420-104L







  *Actual model may vary in detail from image shown and specifications are subject to change without prior notice.
