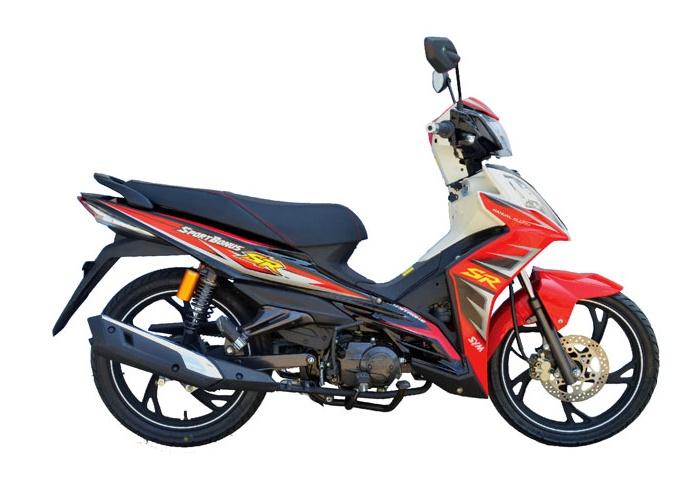

1. RED
2. YELLOW
Express Loan Calculation:-
D/P RM 820.00
60 Bln RM 112.00
48 Bln RM 131.00
42 Bln RM 145.00
36 Bln RM 164.00
30 Bln RM 189.00
24 Bln RM 228.00
********************
D/P RM 1360.00
60 Bln RM 99.00
48 Bln RM 116.00
42 Bln RM 128.00
36 Bln RM 145.00
30 Bln RM 167.00
24 Bln RM 202.00
********************
D/P RM 1860.00
60 Bln RM 87.00
48 Bln RM 102.00
42 Bln RM 113.00
36 Bln RM 127.00
30 Bln RM 147.00
24 Bln RM 177.00
***PRICES ON THE ABOVE ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE***
*******************************************
ENGINE |
|
||
ENGINE TYPE |
4-Stroke, Single Cylinder (SOHC) |
|
|
DISPLACEMENT |
110cc |
|
|
BORE X STORKE |
50mm x 55mm |
|
|
COOLING SYSTEM |
Air Cooled |
|
|
MAXIMUM HORSEPOWER |
7.2ps / 7,500rpm |
|
|
MAXIMUM TORQUE |
0.76kfg.m / 5,500rpm |
|
|
COMPRESSION RATIO |
9.1:1 |
|
|
IGNITION SYSTEM |
DC-CDI |
|
|
STARTING SYSTEM |
Kick and Electric Starter |
|
|
FUEL TANK CAPACITY |
4 Liter |
|
|
FUEL CONSUMPTION |
55km / Litre @ 90km/h |
|
|
TRANSMISSION: |
|
||
TYPE |
4-Speed Rotary |
|
|
CLUTCH |
Manual & Wet Clutch |
|
|
PRIMARYREDUCTION RATIO |
4.059 (69 / 17) |
|
|
FINAL REDUCTION RATIO |
2.57 (36 / 15) |
|
|
|
|
|
|
ELECTRICAL SYSTEM |
|||
BATTERY |
12V 5AH (MF-Maintenance Free) |
||
DIMENSION: |
|||
OVERALL LENGTH |
1920mm |
||
OVERALL WIDTH |
680mm |
||
OVERALL HEIGHT |
1100mm |
||
DRY WEIGHT |
96kg |
||
CHASSIS |
|||
TYPE |
Pipe Backbone |
||
SUSPENSIONS |
|||
FRONT SUSPENSIONS |
Telescopic Folk |
||
REAR SUSPENSIONS |
Swing Arm |
||
BRAKES |
|||
FRONT BRAKES |
Disc |
||
REAR BRAKES |
Drum |
||
TIRES |
|||
FRONT TIRES |
70 / 90-17 38p (Tubeless) |
||
REAR TIRES |
80 / 90-17 50p (Tubeless) |
||
REMARKS
*All the pictures shown above are for illustration purposes only and may vary from actual product
*All the features ,specifications and colours are subject to change without prior notice and may vary from actual product
*Price above is subject to change without prior notice
