Loan Express Calculator:-
***PRICES ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE**
| ENGINE | |
|
Engine Type |
Liquid-cooled, 4-stroke, Parallel, DOHC, 8 valves |
|
Bore & Stroke(mm) |
83.0 mm x 60.0 mm |
| Displacement(cm³) | 649 cm³ |
| Compression Ratio | 10.8:1 |
| a) Maximum power | 50.2 kW {68 PS} @ 8,000 minˉ¹ |
| b) Maximum torque | 65.7 N·m {6.7 kgf·m} @ 6,500 minˉ¹ |
| Fuel System Carburetor | Fuel injection:Ø36mm x 2 with dual throttle valves |
| Starting | Electric starter |
| Ignition | Digital |
| Lubrication | Forced lubrication, semi-dry sump |
| DRIVETRAIN | |
| Transmission | 6-speed, Constant mesh, Return shift |
| Gear ratios: | 1st 2.438 (39/16) 2nd 1.714 (36/21) 3rd 1.333 (32/24) 4th 1.111 (30/27) 5th 0.966 (28/29) 6th 3.067 (46/15) |
| Final reduction ratio | 3.067 (46/15) |
| Clutch | Wet multi-disc,manual |
| FRAME | |
| Type | Trellis,high-tensile steel |
| Caster (rake) | 24.0º |
| Tyre | |
| a) front | 120/70 ZR 17M/C (58W) Tubeless |
| b) rear | 160/60 ZR 17M/C (69W) Tubeless |
| SUSPENSION | |
| Front: Type | Ø41 mm Telescopic fork |
| Rear: Type | Horizontal Back-link with adjustable preload |
| BRAKES | |
| Front: Type | Dual semi-floating Ø300 mm petal discs Dual piston |
| Rear: Type | Single Ø220 mm petal disc, single piston |
| DIMENSIONS | |
| Overall length | 2,115 mm |
| Overall width | 775 mm |
| Overall height | 1,080 mm |
| Wheelbase | 1,410 mm |
| Ground clearance | 130 mm |
| Dry weight | 187 kg |
| Fuel capacity | 15 liters |
| Seat height | 790 mm |

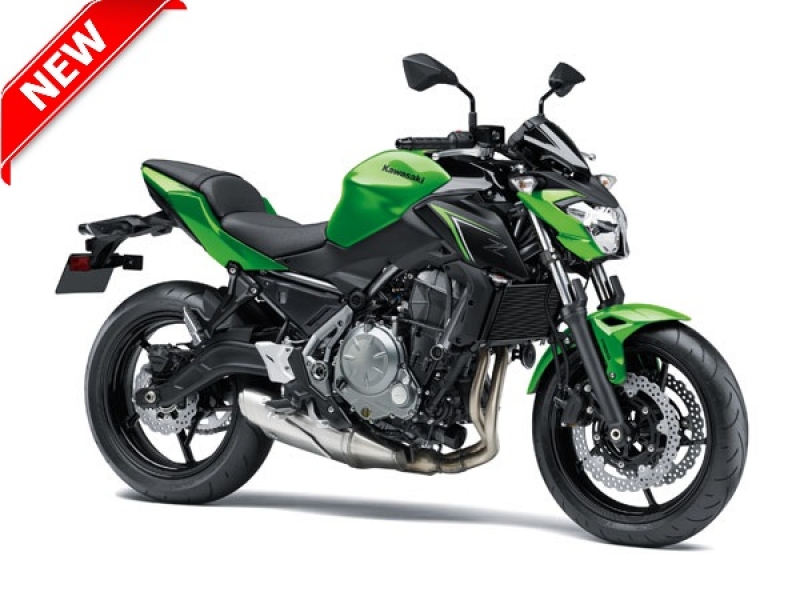

*Actual model may vary in detail from image shown and specifications are subject to change without prior notice.
